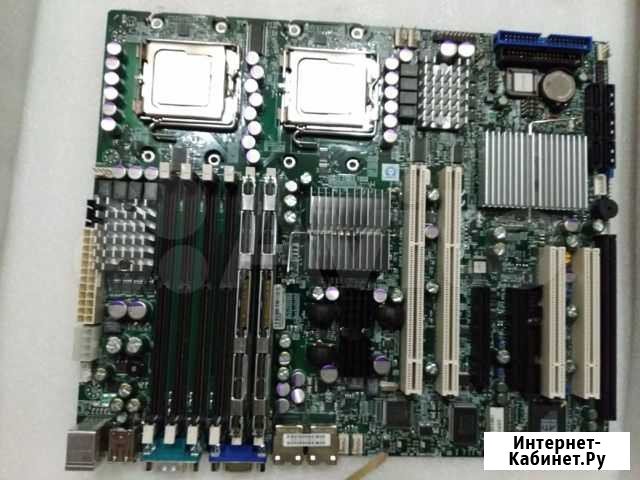

SuperMicro X7DVL-E

X7DVL-E Low Cost Xeon Dual-Core Blackford VS ServerBoard Key Features 1. Dual Intel® 64-bit Xeon® Quad-Core     or Dual-Core, with 667 / 1066 / 1333     MHz FSB 2. Intel® 5000V (Blackford VS) Chipset 3. Up to 24GB DDR2 667 & 533 SDRAM     Fully Buffered DIMM (FB-DIMM) 4. Intel® (ESB2/Gilgal) 82563EB Dual-port      Gigabit Ethernet Controller 5. 6x SATA 3.0Gbps Ports via ESB2 Controller 6. 1 (x8) & 1 (x4) in (x8) PCI-Express,     2x 64-bit 133/100MHz PCI-X,     2x 32-bit 33MHz PCI 7. ATI ES1000 Graphics with     16MB video memory 8. IPMI 2.0 (SIMLC) Slot Product SKUs  - Discontinued SKU (EOL). Please contact sales-rep for alternative options. MBD-X7DVL-E-O X7DVL-E (Standard Retail Pack) MBD-X7DVL-E-B X7DVL-E (Bulk Pack)  Physical Stats Form Factor ATX Dimensions 12" x 10" (30.5cm x 25.4cm)  Processor/Cache CPU Dual 771-pin LGA Sockets Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below: Quad-Core Intel® Xeon®Processor 5400/5300 sequence (Harpertown /Clovertown processor) up to 3.16 GHz Dual-Core Intel® Xeon®Processor 5200/5100/5000 sequence (Wolfdale /Woodcrest/Dempsey processor) up to 3.40 GHz System Bus 1333 / 1066 / 667 MHz system bus Operating System Software Supports 64-bit Operating Systems Supports 32-bit Operating Systems  System Memory Memory Capacity Six 240-pin DIMM sockets Supports up to 24 GB 667 / 533MHz DDR2 ECC FB-DIMM memory Dual branch memory bus Memory must be populated in pairs No Memory Mirroring support Memory Type 667 / 533MHz FB-DIMM (Fully Buffered DIMM) ECC DDR2 SDRAM 72-bit, 240-pin gold-plated DIMMs DIMM Sizes 512 MB, 1GB, 2GB, 4GB Memory Voltage 1.8V only 1.5V(AMB) Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) Supports Intel® x4 and x8 Single Device Data Correction (SDDC)  On-Board Devices Chipset Intel® 5000V (Blackford VS) chipset MCH + ESB2 SATA Intel ESB2 SATA 3.0Gbps Controller RAID 0, 1, 5, 10 support (Windows Only) RAID 0, 1, 10 support (Linux) IPMI Support for Intelligent Platform Management Interface v.2.0 200-pin IPMI slot (SIM1U) (Optional: AOC-SIMLC(+), AOC-SIM1U(+)) Network Controllers Intel® (ESB2/Gilgal) 82563EB Dual-Port Gigabit Ethernet Controller Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output Intel® I/OAT support for fast, scaleable, and reliable networking Graphics ATI ES1000 controller with 16 MB of video memory Super I/O Winbond 83627HG chip  Input / Output Serial ATA Six Serial ATA ports Six SATA hard drives supported IDE Single EIDE channel supports up to two UDMA IDE devices (IDE-M, IDE-S) Supports UDMA Mode 5, PIO Mode 4, and ATA/100 Floppy 1 Floppy controller; 1.44 MB, 2.88 MB LAN 2x RJ45 LAN ports USB 2x USB rear ports 2x USB internal headers Total 6 USB 2.0 Compliant / 1.1 Compliant VGA 1x VGA Port Keyboard / Mouse PS/2 keyboard and mouse ports Serial Port / Header 1 Fast UART 16550 serial port 1 Fast UART 16550 serial header Parallel Port 1 Header for ECP / EEP parallel port  System BIOS BIOS Type 8M
